AUTOMATIC BOOM BARRIER SB 206s

Home - - AUTOMATIC BOOM BARRIER SB 206s

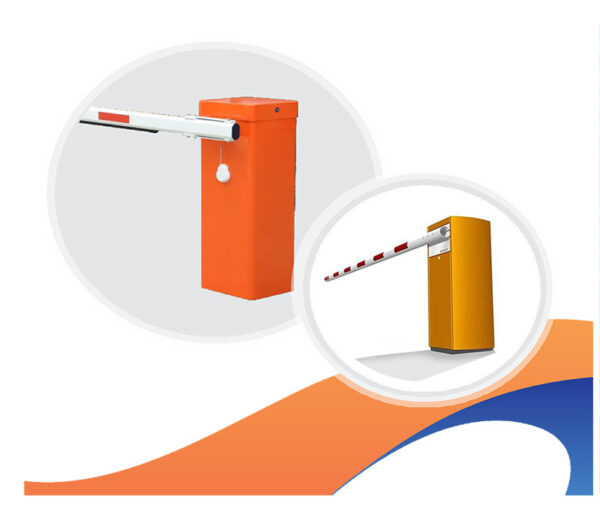

AUTOMATIC BOOM BARRIER SB 206s

For industrial units, offices, corporations, residential areas as well as parking lots and toll tax plazas, an automatic boom barrier provides security. Pedestrian and vehicle traffic may be effectively controlled with the use of an automatic barrier. It may be used to improve security. Suraj Informatics’ high-performance Boom Barriers are ideal for any sort of installation environment. All installation needs may be addressed due to the vast variety of lengths and accessories offered. In the case of a power outage, all models are equipped with a manual operating feature, and some models also have battery backup capabilities.

Category:

Description

Boom Barrier SB 206s
Boom Length/Sectional Size Octagonal Arm 100× 50 mm
Open/Close Time 3.5 sec.
Ontime 100%
Max Power Consumption (operating) 100W
Max Power Consumption (standby) 5W – 8W
Supply voltage/frequency Wide voltage range AC 230 V 100% Duty Cycle
Control Voltage 24V DC/max.300mA
Service life 5-10 million times
Motor No-load Speed 3000r/min
Machine Case Thickness/ Surface Treatment 2mm steel plate/outdoor  electrostatic powder   spraying
Driving Method DC Motor+ Planetary Gear Reducer
Protection Level IP55
Operating Temperature/ Relative Humidity                             -40 – +80 / ≤ 95%
Running Noise <50dB
Machine Case Size 350 ×320×1000   mm
Package size 383×499×1055 mm
Weight 51 KG
